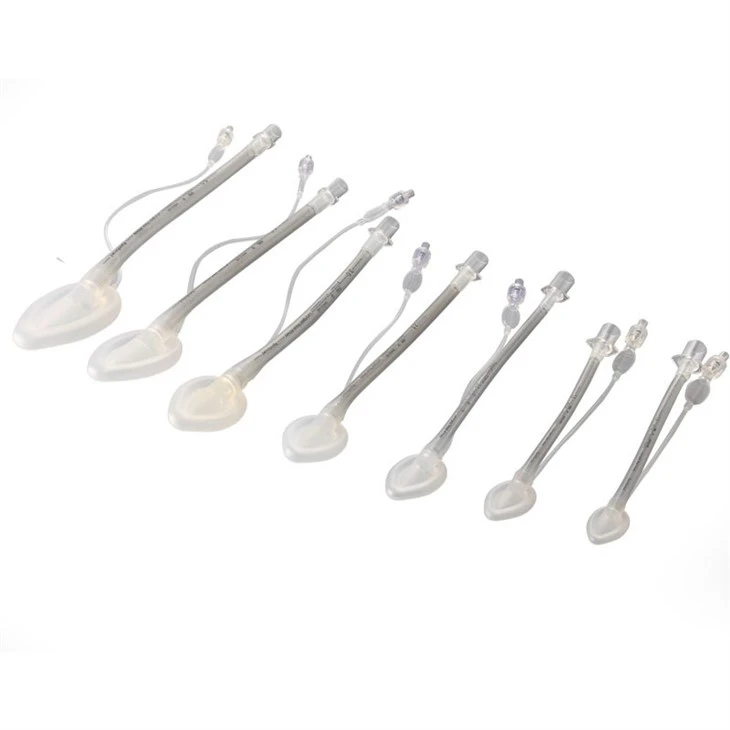

Disposable And Reusable Reinforced Silicone Laryngeal Mask Airway

Disposable And Reusable Reinforced Silicone Laryngeal Mask Airway

For patients under anesthesia or pharmacological sedation and for patients requiringemergency artificial ventilation support during emergency and resuscitation to achieveupper airway patency

Product Introduction

Products Description

Structural Features

Material: Made of medical-grade silicone, which is soft and has good biocompatibility, causing minimal irritation to human tissues. It is internally reinforced with spiral stainless steel wires to enhance the strength and toughness of the catheter.

Components: Usually consists of a ventilation tube, an annular sealing mask around the larynx, a 15mm connector, an inflation tube, an indication balloon, and a valve. The surface of the ventilation tube is smooth, soft, and transparent, with information such as size and length printed on it. There is also an X-ray visible line for observing the position of the catheter during use.

Specifications: Available in various models such as 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, etc. The maximum inflation volume and the applicable patient weight vary with different models. For example, model 1.0 is suitable for patients weighing 0-5kg with a maximum inflation volume of 4ml; model 5.0 is suitable for patients weighing 70-100kg with a maximum inflation volume of 40ml.



Applications

Emergency Field: In emergency situations like cardiopulmonary resuscitation and severe respiratory distress, it can quickly establish an artificial airway, providing effective ventilation support for patients and gaining precious rescue time.

Anesthesia and Surgery: Applicable for general anesthesia surgeries of the body surface and limbs that do not require muscle relaxation, as well as for ophthalmic surgeries, laparoscopic examinations, etc. In these surgeries, it can ensure the patency of the patient's airway while reducing airway damage and the risk of postoperative complications. For patients with difficult intubation, it can be used as an emergency airway tube or as a guide for endotracheal intubation.

Other Scenarios: Also used for airway management before surgeries that require special patient positions. For example, before head or back surgeries, a reinforced silicone laryngeal mask airway can be inserted first to ensure the patency of the patient's airway during the adjustment of the position.



Advantages

Easy to Operate: There is no need to use a laryngoscope to expose the glottis, and it can be inserted blindly. The operation is relatively simple, and even healthcare workers with relatively little experience can master it quickly.

Less Invasive: Compared with endotracheal intubation, it causes less damage to the pharynx, larynx, and tracheal mucosa, effectively reducing the occurrence of complications such as laryngeal edema, vocal cord injury, and recurrent laryngeal nerve paralysis.

Good Airway Maintenance: It can maintain airway patency well, ensure the patient's ventilation and oxygenation, and has low airway resistance, reducing the work of breathing for the patient and preventing the respiratory muscles from getting fatigued easily.



Limitations

Restricted Applicable Population: It is not suitable for patients with full stomachs, high intra-abdominal pressure, a high risk of vomiting, reflux, and aspiration, as well as those with infections in the throat, respiratory tract bleeding, small mouth, large tongue, or abnormally enlarged tonsils.

Sealing Issues: The sealing of the airway is sometimes poor, and air leakage is likely to occur during positive pressure ventilation. Also, the isolation between it and the esophageal orifice is not sufficient, and anesthetic gases may enter the stomach, leading to situations such as vomiting, reflux, and aspiration.



Reinforced Silicone Laryngeal Mask Airway 08

Reinforced Silicone Laryngeal Mask Airway 07

Reinforced Silicone Laryngeal Mask Airway 09





Disposable Reinforced Silicone Laryngeal Mask Airway Reusable Reinforced Silicone Laryngeal Mask Airway

Reinforced Silicone Laryngeal Mask Airway 03

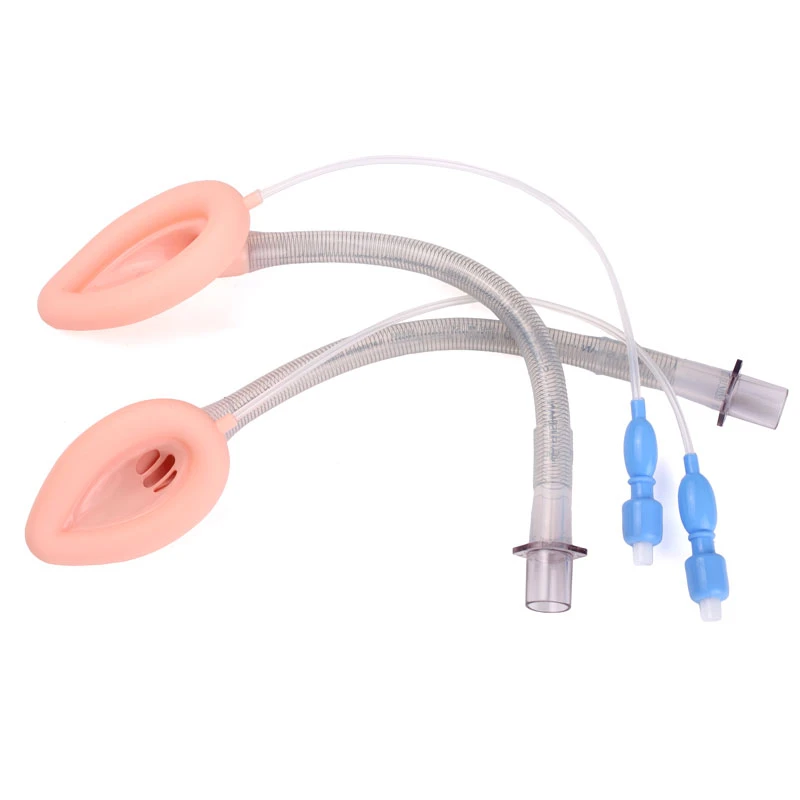

Reinforced Silicone Laryngeal Mask Airway 04



Disposable and Reusable Reinforced Silicone Laryngeal Mask Airway

Size
1.0
1.5
2.0
2.5
3.0
4.0
5.0
Single use Item No.
LM1004S1R
LM1507S1R
LM2010S1R
LM2514S1R
LM3020S1R
LM4030S1R
LM5040S1R
Single use Item No. (With Bar)
LM1004GS1R
LM1507GS1R
LM2010GS1R
LM2514GS1R
LM3020GS1R
LM4030GS1R
LM5040GS1R
Reusable Item No.
LM1004S2R
LM1507S2R
LM2010S2R
LM2514S2R
LM3020S2R
LM4030S2R
LM5040S2R
Reusable Item No. (With Bar)
LM1004GS2R
LM1507GS2R
LM2010GS2R
LM2514GS2R
LM3020GS2R
LM4030GS2R
LM5040GS2R
Patient Selection
0-5KG
5-10KG
10-20KG
20-30KG
30-50KG
50-70KG
70-100KG
Max.Inflation Volume
4ml
7ml
10ml
14ml
20ml
30ml
40ml
Remark
1.Bar/Aperture: ☑with ☑without
2.Cuff Color: ☑Flesh ☑Blue ☑Transparent
