Product Parameters
Professional CCDS
|
Material |
Spraying Plastics |
220HZ/50HZ, Additional UK Plug Adapter |
|
|
Equipment size |
900x1600x200mm |
Gross weight |
400kgs |
|
Range of application |
15-120 beds |
Capacity |
Mixing Tank 200L, Storage Tank 400L |
|
Cross floor liquid supply |
Support |
Remark |
If different floors, module is necessary. |
|
Way of disinfection |
A System: UV and chemical disinfection B System: Ozone disinfection |
||
|
Conductivity detection |
A system is with conductivity detection |
||
|
Supported languages |
It can be inserted different languages |
||
|
Reference price |
$12500.00/set |
(Machines value only not including the pipelines and installation to the bed) |
|
|
Pipeline laying |
$50/bed (Same floor) |
Remark: If different floors, module is necessary. |
|
|
Remark |
The style and size can be designed according to actual layout of the dialysis center and customer required. |
||
Simplified CCDS
|
Material |
PP |
220HZ/50HZ, Additional UK Plug Adapter |
|
|
Package Size |
950*950*1350mm |
Gross weight |
300kgs |
|
Range of application |
5-40 beds |
Capacity |
Mixing tank in 200L without storage. |
|
Cross floor liquid supply |
support |
Remark |
If different floors, module is necessary. |
|
Way of disinfection |
A System: UV and chemical disinfection B System: Ozone disinfection |
||
|
Conductivity detection |
A system is with conductivity detection |
||
|
Supported languages |
It can be inserted different languages |
||
|
Reference Price |
$2100.00/set |
(Bed pipelines and installation are not included) |
|
|
Pipeline laying |
$50/bed (Same floor) |
Remark: If different floors, module is necessary. |
|
|
Remark |
The style and size can be designed according to actual layout of the dialysis center and customer required. |
||
Standard CCDS
|
Material |
Stainless steel shell, PP contact part |
220HZ/50HZ, Additional UK Plug Adapter |
|
|
Package Size |
Main machine: 950*950*1350mm Storage tanks: 950*800*2100mm |
Gross weight |
Mixing system: 300kgs Storage tanks: 500kgs |
|
Range of application |
15-120 beds |
Capacity |
Mixing Tank 200L, Storage Tank 400L, |
|
Cross floor liquid supply |
Support |
Remark |
If cross floor, pumps need to be added |
|
Way of disinfection |
A System: UV and chemical disinfection B System: Ozone disinfection |
||
|
Conductivity detection |
A system is with conductivity detection |
||
|
Supported languages |
It can be inserted different languages |
||
|
Reference price |
$12000.00/set |
(Machines value only not including the pipelines and installation to the bed) |
|
|
Pipeline laying |
$50/bed (Same floor) |
Remark: If different floors, module is necessary. |
|
|
Remark |
The style and size can be designed according to actual layout of the dialysis center and customer required. |
||
Mini CCDS
|
Material |
PP |
220HZ/60HZ equipped with British standard adapter plug |
|
|
Package size |
1400**1200*800mm |
Gross weight |
350kgs |
|
Range of application |
5-40beds |
Capacity |
Mixing Tank 200L, Storage Tank 200L |
|
Cross floor liquid supply |
support |
Remark |
If cross floor, pumps need to be added |
|
Way of disinfection |
A System: UV and chemical disinfection B System: Ozone disinfection |
||
|
Conductivity detection |
A system is with conductivity detection |
||
|
Supported languages |
It can be inserted different languages |
||
|
Reference price |
$7500.00/set |
(Machines value only not including the pipelines and installation to the bed) |
|
|
Pipeline laying |
$50/bed (Same floor) |
Remark: If different floors, module is necessary. |
|
|
Remark |
The style and size can be designed according to actual layout of the dialysis center and customer required. |
||

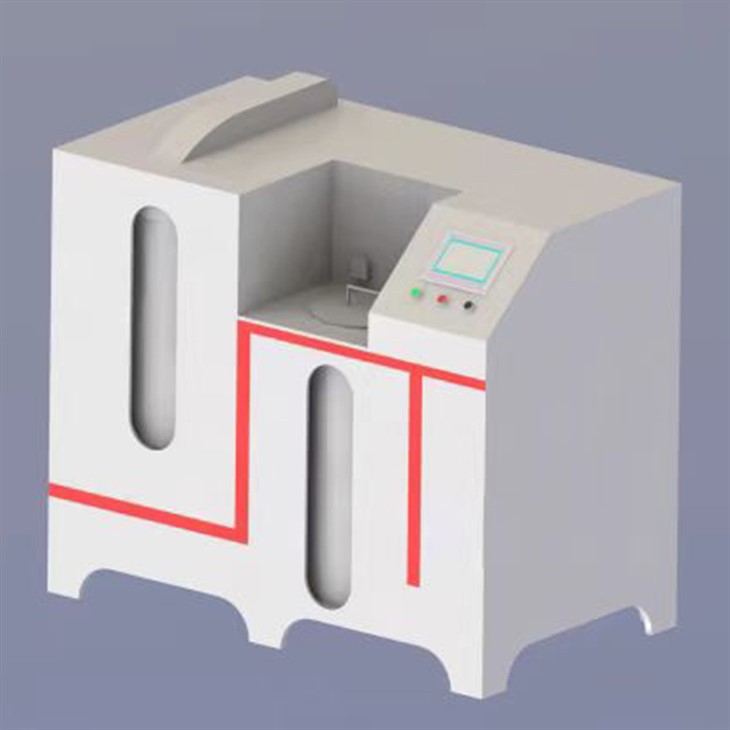

Centralized Distribution System for Hemodialysis Concentrate (CCDS) can automatically and accurately mix dry powder and dialysis water into concentrate, which can be transported to the dialysis machine by pipeline and can be used at any time. Users just click on the touch screen and add dry powder. CCDS not only brings fresh and pure concentrate supply, improves the therapeutic effect of dialysis, but also saves a lot of labor and transportation and storage costs, making the departments more orderly.
